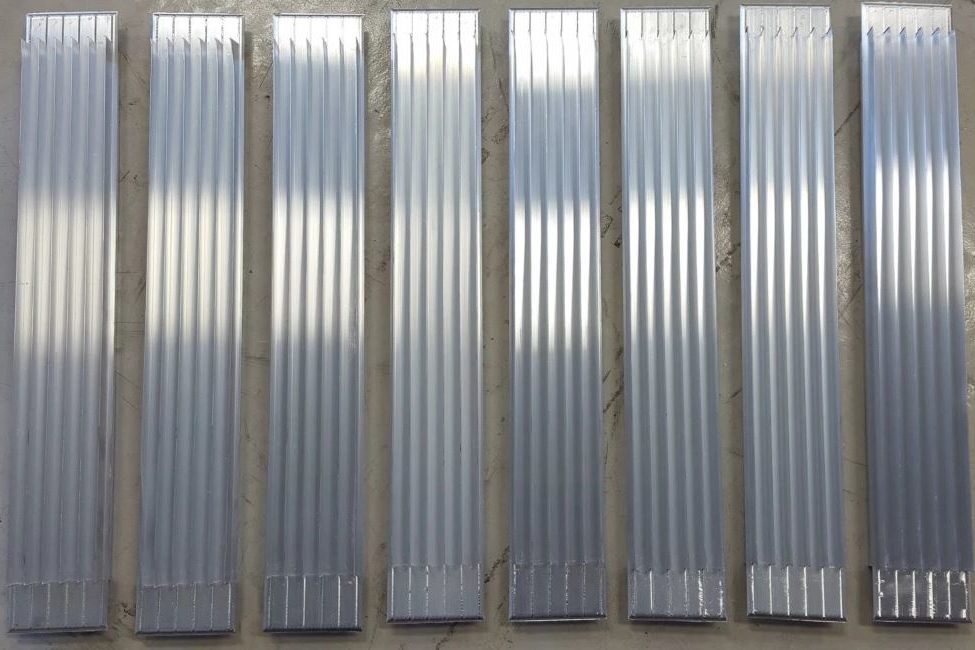

Pin type Reputable Heat Pipe

It is the same as a flat plate heat pipe, and the heat dissipation fin is integrally molded outside to increase heat dissipation efficiency. It can be used to increase the temperature of a radiator or interior space that needs heat dissipation.

Length-100mm-1.960mm
Width-85mm
Pin height-12mm
weight-
Material-AL60
Working fluid-inorganic mixed liquid
Wick-Capillaries
Conductivity-10000000w/m.k
Isothermal-<1k/m
Maximum current density -100~200w/㎠
Operating temperature range–50~120℃
Internal boosting strength-60atm
External compressive strength (front pressure)-40kg/㎠
